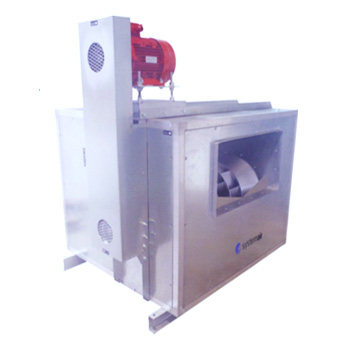

Belt-Driven Centrifugal Cabinet Fan AW Series
Belt-Driven Centrifugal Cabinet Fan AW Series
Belt-Driven Centrifugal Cabinet Fan AW Series
• The AW series of belt driven centrifugal cabinet fan with externally located motor have been designed for smoke spill application and kitchen application.
• Cabinet is manufactured is galvanised sheet steel incorporated with belt driven, high efficiency, low noise level, double inlet backward impeller.
• Complete with inlet & outlet flange as standard for easy duct installation.
• Easy installation & ease of maintenance. • Non-Overloading power characteristic.
• Suitable for high pressure ventilation systems or where the system could fluctuate.
• Normal discharge velocities 1800 – 3000 feet per minute.
*Click the button if you wish to view/download the Technical Data.
Related Products
AJ8-TR – Premium
AJ8-TR (Premium) The Stylish one.
Standard features
• For daily ventilation requirements and smoke extraction in case of fire F300 (300 °C/120 min.).
• Symmetrical impeller blades; 100% reversible with low noise emissions.
• IP55 motors, insulation class H (smoke extraction ver- sion); IP55 motors, insulation class F (CO ventilation), according to EN60034-5.
• 50/60 Hz version available.
• Tested maintenance switch optional.
• Housing from galvanised sheet steel.
• Tested according to EN 12101-3.
• CE certification by BSI.*Click the button if you wish to view/download the Technical Data.
IV Smart
IV SMART – The space-saving miracle.
features
• Green Ventilation jet fan with energy efficient EC technology for daily demand ventilation, CO control and cold smoke extraction. Your benefit: in an energy-efficient way IV smart meets all necessary requirements you have to fulfil.
• Available in 50/60 Hz, 230 V EC motors IP 44, according to EN 60034-5. Your benefit: cost-efficient – no expensive supply lines required.
• Very high efficiency. Your benefit: maximum performance and low energy consumption.
• Flat, compact housing. Your benefit: low installation height.
• Low weight and pre-installed ceiling mountings made of galvanised steel. Your benefit: easy, fast and safe installation.
• 100% controllable via 0-10V signal.
• Integrated motor protection.
• Casing made of galvanised steel sheet.
• For medium temperatures up to 55°C in continuous operation.
• Terminal box mounted at the outside of the casing for easy wiring.*Click the button if you wish to view/download the Technical Data.
AJR-TR
AJR-TR – The functional one.
Standard features
• For daily ventilation requirements and smoke extraction in case of fire F300 (300 °C/120 min.).
• Symmetrical impeller blades; 100% reversible with low noise emissions.
• IP55 motors, insulation class H (smoke extraction version); IP55 motors, insulation class F (CO ventilation), according to EN 60034-5.
• 50/60 Hz version available.
• Tested maintenance switch optional.
• Housing from galvanised sheet steel.
• Tested according to EN 12101-3.
• CE certification by BSI.*Click the button if you wish to view/download the Technical Data.
IV
IV – The Compact One.
Standard features
• For daily ventilation requirements and smoke extraction in case of fire F300 (300 °C/120 min.).
• Symmetrical impeller blades; 100% reversible with low noise emissions.
• IP55 motors, insulation class H (smoke extraction ver- sion); IP55 motors, insulation class F (CO ventilation), according to EN60034-5.
• 50/60 Hz version available.
• Tested maintenance switch optional.
• Housing from galvanised sheet steel.
• Tested according to EN 12101-3.
• CE certification by BSI.*Click the button if you wish to view/download the Technical Data.
