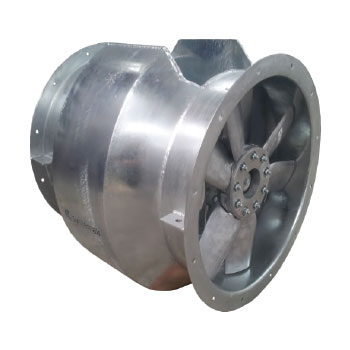

Bifurcated Axial Fan AXCBF
Bifurcated Axial Fan AXCBF
Standard features
• Aerofoil impeller with adjustable pitch angle
• Die-cast aluminium hub and blades
• Bifurcated casing, hot dip galvanised steel to EN ISO1461
• Flanges to Eurovent 1⁄2
• Three phase motors, IP55, insulation class F, in accordance with EN60034-5IEC85, terminal box mounted directly onto the motor.
• Suitable for operating tempertures up to 200°C.
The Systemair AXCBF range of bifurcated medium pressure axial fan has been developed for applications with an atmosphere which would either require special motors or reduce the lifetime of a standard motor. The motors of AXCBF are out of the airstream. Available in sizes from 315 up to 1250mm nominal diameter.
Sturdy casing
AXCBF bifurcated axial fan casings are heavy gauge, hot dip galvanized. The motor compartment allows easy access to the motor terminal box for wiring.
Motors
Three phase B3 foot mounted or B14A flange mounted motors, totally enclosed and fan cooled. Single phase motors are speed controllable by transformer, with a limitation to ambient temperature of maximum 60°C.
Quality
Systemair is certified according to ISO 9001:2008 and ISO 14001:2004. The Systemair quality system is regularly monitored by TÜV Sϋd.
Warranty
Systemair offers a three years warranty on all AXCBF fan models. The Systemair general terms and conditions apply.
Minimum Air Speeds For Satisfactory Conveying Of Dusts
| Material | AVelocity |
|---|---|
| PaperTrim | 5,000ft/min. |
| Sugar | 6,000ft/min. |
| Rubber Buffings | 4,500ft/min. |
| Flour | 3,800ft/min. |
| Sawdust(Dry) | 4,000ft/min. |
| Metaldust | 4,200ft/min. |
| Coal(Pulverised) | Coal(Pulverised) |
Recommended Minimum Velocities For Hoods And Enclosures
| Kitchen equipment |
| 80-150ft/min.atfaceofhood |
| Electro-plating |
| 150ft/min. at face of hood |
| Electric welding |
| 150ft/min. at face of hood |
| Paint spray booths |
| 150ft/min. at breathing zone of operator |
| Sandblast booths |
| 500ft/min. at openings to enclosure |
*Click the button if you wish to view/download the Technical Data.
Related Products
IV
IV – The Compact One.
Standard features
• For daily ventilation requirements and smoke extraction in case of fire F300 (300 °C/120 min.).
• Symmetrical impeller blades; 100% reversible with low noise emissions.
• IP55 motors, insulation class H (smoke extraction ver- sion); IP55 motors, insulation class F (CO ventilation), according to EN60034-5.
• 50/60 Hz version available.
• Tested maintenance switch optional.
• Housing from galvanised sheet steel.
• Tested according to EN 12101-3.
• CE certification by BSI.*Click the button if you wish to view/download the Technical Data.
CDRD
CDRD-Rectangular Cabinet Fan.
features
• Modular System: Casings can be disassembled, if required.
• Easy to install.
• Min. 25mm perforated panels manufactured from pre-galvanised mild steel with non-flammable mineral wool infill for thermal and acoustic insulation.
• All units are fitted with fans from the Systemair range, with external rotor motors for the direct driven units.
• Compact design
• Low-level noiseThe Systemair Preformance Curves.
Have been tested using duct test chamber in accordance with DIN 24153. The values refer to an air density of 1.2 kg/m3 at 20C.
*Click the button if you wish to view/download the Technical Data.
prioJet 200 EC
prioJet 200 EC – The Clever One.
features
• Green Ventilation jet fan with energy efficient EC technology for daily demand ventilation, CO control and cold smoke extraction. Your benefit: in an energy-efficient way IV smart meets all necessary requirements you have to fulfil.
• Available in 50/60 Hz, 230 V EC motors IP 44, according to EN 60034-5. Your benefit: cost-efficient – no expensive supply lines required.
• Very high efficiency. Your benefit: maximum perfor- mance and low energy consumption.
• Flat, compact housing. Your benefit: low installation height.
• Low weight and pre-installed ceiling mountings made of galvanised steel. Your benefit: easy, fast and safe installation.
• 100% controllable via 0-10V signal.
• Integrated motor protection.
• Casing made of galvanised steel sheet
• For medium temperatures up to 55°C in continuous operation.
• Terminal box mounted at the outside of the casing for easy wiring.*Click the button if you wish to view/download the Technical Data.
