CDRD
CDRD

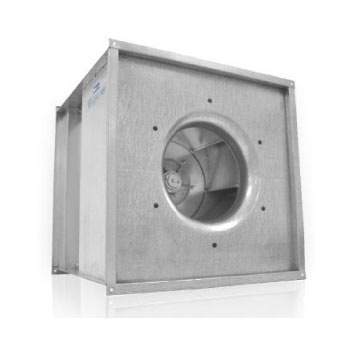

CDRD-Rectangular Cabinet Fan.
features
• Modular System: Casings can be disassembled, if required.
• Easy to install.
• Min. 25mm perforated panels manufactured from pre-galvanised mild steel with non-flammable mineral wool infill for thermal and acoustic insulation.
• All units are fitted with fans from the Systemair range, with external rotor motors for the direct driven units.
• Compact design
• Low-level noise
The Systemair Preformance Curves.
Have been tested using duct test chamber in accordance with DIN 24153. The values refer to an air density of 1.2 kg/m3 at 20C.
*Click the button if you wish to view/download the Technical Data.
Related Products
HK-JA01
High Speed Class.
Our high speed hand dryer series offer 95% cost savings compared with the old-fashioned hand drying method: paper towels. With high speed and energy savings, choosing high speed hand dryers has become a market trend. Users no longer have to be delayed by the long hand-drying wait. Instead, a choice is often made to prolong the moment as they savor the pleasurable experience!
*Click the button if you wish to view/download the Brochure.
AGI
AGI
Robust air curtain for large industrial doors
• Horizontal and vertical mounting
• Lengths: 1,2, 1,8, 2,4 and 3m
• Ambient, no heat
• Water heat WH, WL
Application
AGI is a robust air curtain intended for vertical or horizontal installation in large doorways. With its powerful fans and high enclosure classification it is specially suitable for industrial environments.
Design
AGI has a stable and simple design. It is available in four different lengths of up to 3 metres, which makes it easy to create a continuous air curtain for large doors. In vertical installation two units can be put on top of each other.
Product specifications
• Simple suspension using fixing nuts on the upper side for installation with threaded rod.
• Available for horizontal or vertical mounting.
• Adjustable outlet grille makes it possible to direct the air for optimum air curtain effect.
• High protection class, IP54.
• Model with water coil WH for high water temperatures is available for special order.
• Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Colour: grey, RAL9006.*Click the button if you wish to view/download the Technical Data.
K SILEO Series
K 150 M Sileo
• Speed-controllable
• Quiet-running
• Increased efficiency
• Integral thermal contacts
• Can be installed in any position
• Can be installed outdoors
• Maintenance-free and reliableThe K Sileo series is designed for installation in ducts. All K-fans have a minimum 25 mm long spigot connections.
The fans have backward-curved blades and external rotor motors. To simplify the installation the K Sileo fan has a fixing bracket together with screws for mounting the bracket included as standard. The FK mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans can be speed- controlled via a stepless thyristor or a 5-step transformer.
To protect the motor from overheating the fan has integral thermal contacts with manual reset.The casing is manufactured from galvanised sheet steel and folded which gives the fan a close to air tight casing. Duct connected outdoor and wet room applications of the fan are possible due to the air tight casing.
Download Technical parameters
