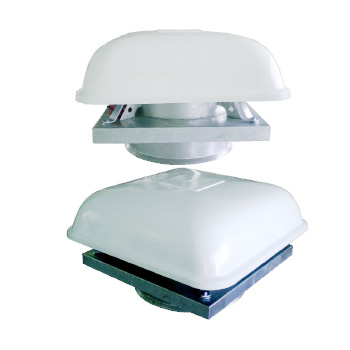

Fiberglass Axial Roof Fan

● The AXC-R series has been tested to meet the air performance test ISO 5801, DIN 24163 & AMCA 210-99.
● The fibre glass series of Axial Roof Fan are fitted with adjustable pitch enabling wide performance range to be obtained from any unit.
● Designed for exhaust applications, handling clean or toxic fumes.
● Galvanised steel base, cowls are fibreglass designed.
● The axial impellers are adjustable pitch manufactured in GRP or aluminium to suit the application.
● Butterfly damper/shutter are optional items.

Performance Data

4 pole

Model	SPEED(RPM)	MOTOR (Kw)	Sound level (dBA)
AXC-R 400	1450	0.37	64
AXC-R 500	1450	0.37	67
AXC-R 560	1450	1.5	72
AXC-R 630	1450	2.2	74
AXC-R 710	1450	7.5	74
AXC-R 800	1450	7.5	84
AXC-R 900	1450	7.5	85
AXC-R 1000	1450	18.5	86
AXC-R 1250	1450	30	86

6 POLE

Model	SPEED(RPM)	MOTOR (Kw)	Sound level (dBA)
AXC-R 400	960	0.37	56
AXC-R 500	960	0.37	59
AXC-R 560	960	0.37	61
AXC-R 630	960	1.1	64
AXC-R 710	960	2.2	64
AXC-R 800	960	2.2	71
AXC-R 900	960	2.2	73
AXC-R 1000	960	7.5	78
AXC-R 1250	960	11	78
