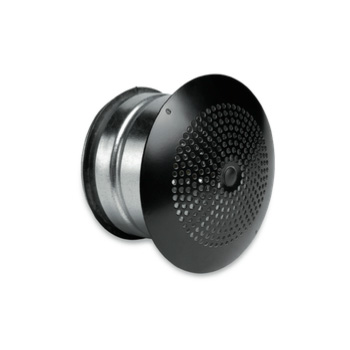

Elegant-AT

Related Products

• ADDED

  NOVA-B

  Size: 200 x 100 – 1000 x 200 mm
  Air flow: 150 – 3000 m3/h | 42 – 833 l/s | 89 – 1770 cfm

  • Single or double deflection grille with adjustable deflectors for supply and return air
  • Manufactured from galvanized steel(stainless steel on demand)
  • Standard fixing system by spring clips (screw fixing on demand)
  • Limited dimensions in stock, sizes 200 x 100 mm to 1200 x 500 mm on demand
  • Accessories:opposed blade damper and mounting frame

• ADDED

  NOVA-L

  Size: 200 x 100 – 1000 x 200 mm
  Air flow: 80 – 2225 m3/h | 22 – 618 l/s | 47 – 1313 cfm

  • Linear bar grille with fixed blades for supply and return air
  • Manufactured from aluminium with white finish RAL 9010 (natural anodized on demand)
  • Standard fixing system by spring clips (screw fixing on demand)
  • Limited dimensions in stock, sizes 200 x 100 mm to 1200 x 500 mm on demand
  • Accessories:opposed blade damper and mounting frame

• ADDED

  TFF

  Size: 80 – 200 mm
  Air flow: 30 – 265 m3/h | 8 – 74 l/s | 18 – 156 cfm

  • Return air valve
  • Manufactured from galvanized steel, powder painted in white RAL 9010
  • Spring fixing system as standard
  • All sizes are stock articles
  • Accessories:mounting frame and plenum box

• ADDED

  NOVA-D

  Size: 200 x 100 – 600 x 300 mm
  Air flow: 60 – 890 m3/h | 17 – 247 l/s | 35 – 525 cfm

  • Non vision transfer air door grille
  • Manufactured from aluminium; powder painted to white RAL 9010 (natural anodized on demand)
  • Standard fixing system with screws
  • Limited dimensions in stock, sizes 200 x 100 mm to 1200 x 500 mm on demand
  • Accessories: long and short counter frame for different door thickness
