• ADDED

  CDRE



  CDRE-Rectangular Cabinet Fan.

  features

  • Modular System: Casings can be disassembled, if required.
  • Easy to install.
  • Min. 25mm perforated panels manufactured from pre-galvanised mild steel with non-flammable mineral wool infill for thermal and acoustic insulation.
  • All units are fitted with fans from the Systemair range, with external rotor motors for the direct driven units.
  • Compact design
  • Low-level noise

  ---

  The Systemair Preformance Curves.

  Have been tested using duct test chamber in accordance with DIN 24153. The values refer to an air density of 1.2 kg/m3 at 200C.



  *Click the button if you wish to view/download the Technical Data.

• ADDED

  Bifurcated Axial Fan AXCBF



  Standard features

  • Aerofoil impeller with adjustable pitch angle
  • Die-cast aluminium hub and blades
  • Bifurcated casing, hot dip galvanised steel to EN ISO1461
  • Flanges to Eurovent 1⁄2
  • Three phase motors, IP55, insulation class F, in accordance with EN60034-5IEC85, terminal box mounted directly onto the motor.
  • Suitable for operating tempertures up to 200°C.

  The Systemair AXCBF range of bifurcated medium pressure axial fan has been developed for applications with an atmosphere which would either require special motors or reduce the lifetime of a standard motor. The motors of AXCBF are out of the airstream. Available in sizes from 315 up to 1250mm nominal diameter.

  ---

  *Click the button if you wish to view/download the Technical Data.

• ADDED

  PA1508



  PA1508



  Air curtain for small openings.
  • For small openings
  • Horizontal mounting
  • Length: 0,8 m
  • Electrical heat: 2-4,5 kW

  Application

  PA1508 is primarily intended for small openings such as kiosk and service hatches and cashier benches where a long, narrow air flow is required. This creates a temperature separating air barrier that prevents cold air from pushing in and hot air from flowing out. PA1508 also gives additional heat and in this way also improves the working environment.

  Design

  With its compact construction and timeless design the unit is easy to place in any doorway. The intuitive controls are easily accessible, placed on the gable end. The front can be finished in any colour to perfectly match the environment.

  Product specifications

  • Built-in control.
  • Compact and easily positioned.
  • Low sound level.
  • Units with 2-3 kW are supplied with a 1,8 m cable and plug. Units with 4,5 kW are supplied with a 1,3 m cable without plug.
  • The unit is easily angled on the bracket, which is used for both wall and ceiling mounting.
  • Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Colour front: white, RAL 9016,
  NCS S 0500-N. Colour grille, rear section, ends and brackets: grey, RAL 7046.

  *Click the button if you wish to view/download the Technical Data.

• ADDED

  PA4200



  PA4200

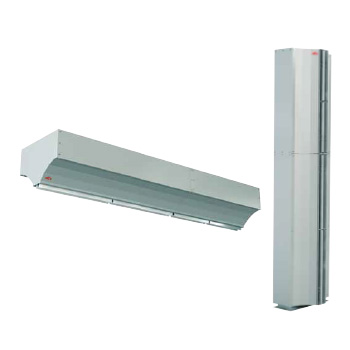

  Stylish air curtain for commercial and industrial premises, with intelligent control.
  • Horizontal mounting
  – Recommended installation height 4,2 m* – Lengths: 1, 1,5, 2 and 2,5 m
  • Vertical mounting
  – Recommended installation width 6 m*
  (2 units), one on each side – Lengths: 1,5, 2 and 2,5 m
  • Ambient, no heat
  • Electrical heat: 8–20 kW
  • Water heat WH, WL, WLL



  Application

  With air curtain PA4200 there are more opportunities than ever before, packed into the same product. There are therefore many areas of use. PA4200 is specifically designed for doorways in for example, large commercial installations or industrial and warehouse buildings.
  The air curtain has many intelligent and energy saving features which provide fully automatic protection for the entrance, adaptable to each area of use.

  Design

  Through its timeless design and its many accessories, it's easy to get PA4200 to blend well into the premises. Front and service hatch can be finished in any colour to perfectly match the environment. The air curtain is available for horizontal, vertical and recessed installation.

  Product specifications

  • Prepared for the SIRe control system whose pre-programmed default settings and many features make it easy to install and use the air curtain. Read more about the SIRe controls package in the “Controls” section.
  • The front is easy to open and lock in the open position, which facilitates installation and allows easy maintenance.
  • The air curtain is complemented with a vertical kit for vertical installation.
  • Outlet extension for recessed installation is available as an accessory.
  • The accessory Design kit enables a neat installation with concealed mountings, pipes and cables.
  • Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Colour front and service hatch: white, RAL 9016, NCS S 0500-N. Colour grille, rear section and ends: grey, RAL 7046.

  *Click the button if you wish to view/download the Technical Data.
